DeviLAN App / SEARCH & CONFIGURE DEVICES
#########
Search & Configure Remote Control Download
#########
#########
#########
 Search and configure devices (getting started)
#########

Use your iPhone, iPad or iPod to search, configure your synertronixx device !!

DeviLAN App is the standard configuration and monitoring tool for synertronixx devices and modules. It uses UDP broadcast messages to request and change network configuration for modules like CAN2Web-Advanced or CAN2Web-Professional. TCP/IP communication is used for setting parameters and monitoring device.

... and now getting started ....

DeviLAN App search, configure & monitor
 Search & configure device network settings
To search & find mdoules in LAN or WLAN select tab "Search".

  • First be sure that UDP identification programm is running at the network device.
  • Press button "Refresh / Reload" to scan modules one time.
  • Press button "Cyclic" to make DeviLAN App cyclic (all 5 seconds) scan for modules.
  • All modules found will be listed in two sections depending on the module type (SCB9xxx oder SC12/SC13)
  • To clear the list press "Delete" button (Trash can).

  • Select one entry to get control view for a module.
  • Modify the network settings in the way you need it.
    Changing a parameter will NOT send new values to module!
  • Press button "Set" to send new settings to module.
  • Press button "Refresh / Reload" to load nettwork settings again.
  • Button "Reboot" will force a restart/reboot of the module.
  • With button "Show webinterface in browser" a browser window will be opend with webinterface of module.
  • Press button "Connect" to open a TCP/IP connection to module. Therefore the app will switch to tab "Socket"
DeviLAN App search, configure & monitor
DeviLAN App search, configure & monitor

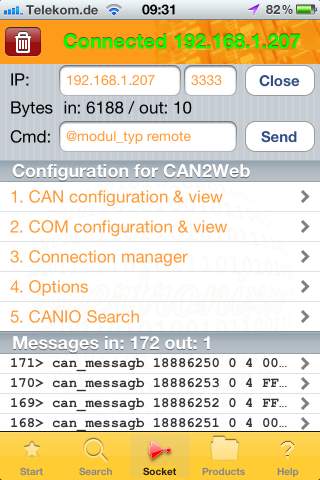

 Connect device via TCP/IP socket
To connect a modules in LAN or WLAN via a TCP/IP socket select tab "Socket".
  • Enter IP address and port number of module.
  • Press button "Connect" to open the TCP/IP connection.
  • To disconnect press button again.
  • When connection is open modul will send a type information. Depending on this message additional entries for dialogs will be shown.
  • For CAN2Web module this are:
    "CAN configuration & View", "COM configuration & View", "Connection manager", "Options", "CANIO Search". Select an entry to go to a dialog.

  • Also all received and transmitted messages are shown.
  • To clear the listed messages press "Delete" button (Trash can).
  • To send a message to module use the edit field and press button "Send".
DeviLAN App search, configure & monitor

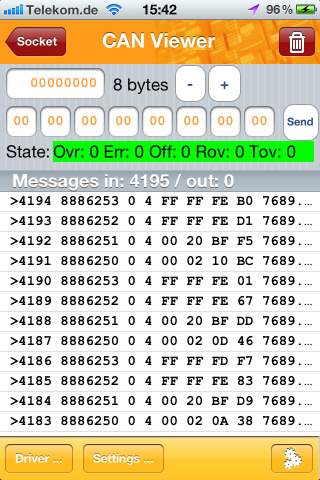

 CAN configuration and monitoring
This 5 dialogs allows you to configure CAN interface of CAN2Web modules and to send and receive message.

  • All CAN messages will be listed when switch
    "Show received messages" and
    "Show send messages" is on on dialog "Viewer Options".

  • Use edit field to prepare a message for sending.

  • Press button set "Send" to send the CAN message.

  • To clear the listed messages press "Delete" button (Trash can).




  • Use dialog "Viewer Options" to set message type (CAN2.0/CAN2.0B).



  • Select a CAN messages to get detailed information.

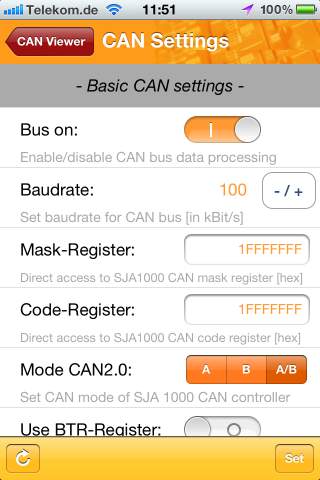

  • Press button "Settings" to get the dialog with CAN settings.

  • To modify CAN settings just change the parameters.
    Changing will NOT send new values to module!

  • Press button "Set" to send new settings to module.

  • Press button "Refresh / Reload" to get actual configuration from module.

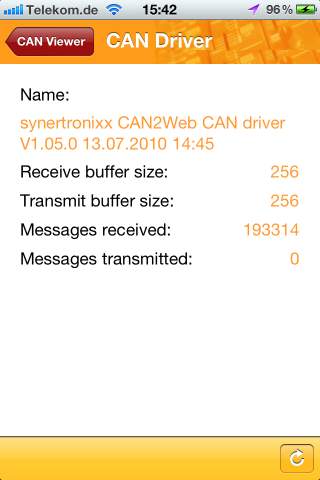

  • Press button "Driver" to get the dialog with CAN driver information.

  • Use button "Refresh / Reload" to update for received and transmitted messages.

DeviLAN App search, configure & monitor
DeviLAN App search, configure & monitor
DeviLAN App search, configure & monitor
DeviLAN App search, configure & monitor
DeviLAN App search, configure & monitor

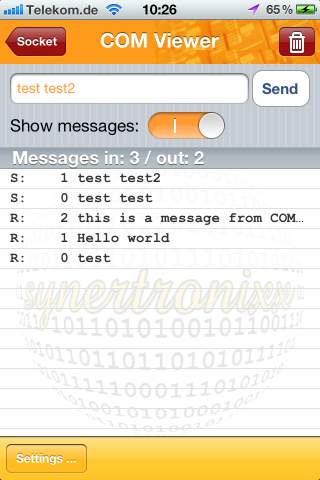

 COM configuration and monitoring
This two dialogs allows you to configure COM (serial) interface of CAN2Web modules and to send and receive message to / from COM.

  • All messages will be listed when switch "Show messages" is on.

  • Use edit field to prepare a message.

  • Press button set "Send" to send the message in edit field

  • To clear the listed messages press "Delete" button (Trash can).

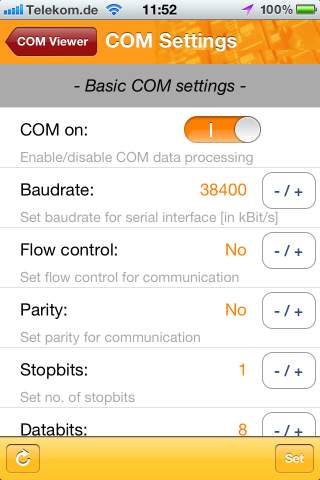

  • Press button "Settings" to get the dialog with COM settings.

  • To modify COM settings just change the parameters.
    Changing will NOT send new values to module!

  • Press button "Set" to send new settings to module.

  • Press button "Refresh / Reload" to get actual configuration from module.

DeviLAN App search, configure & monitor DeviLAN App search, configure & monitor

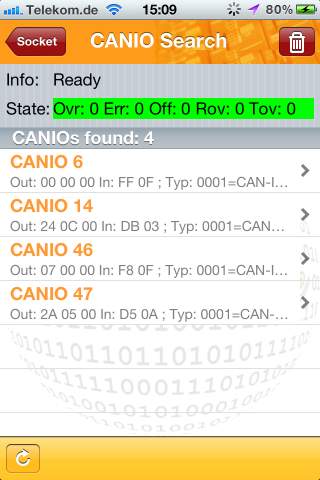

 CANIO monitoring
This two dialogs allows you to find and control CANIO modules connected to CAN bus:
  • First be sure that CAN2Web CAN bus settings will match to settings of CANIO.

  • Press button "Refresh / Reload" to scan for CANIO modules on bus.

  • All modules found will be listed.

  • To clear the list press "Delete" button (Trash can).

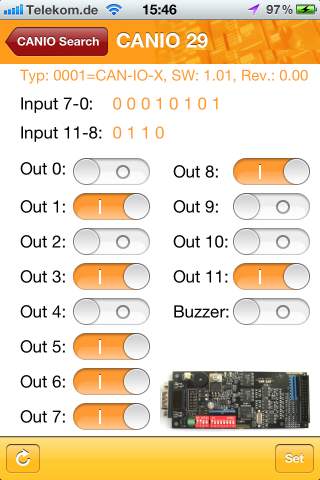

  • Select the entry to get control view for a single CANIO module.

  • To modify digital outputs just change the switches.
    Changing a switch will NOT send new values to module!

  • Press button "Set" to send a command with new settings to CANIO module.

DeviLAN App search, configure & monitor
DeviLAN App search, configure & monitor
 Product overview
To get an product overview of synertronixx products select tab "Product".

  • Just select an product entry to get detailed information.

  • Press button "Webpage ..." to open the product webpage in your standard browser.

DeviLAN App search, configure & monitor
DeviLAN App search, configure & monitor


So that's It!!

We hope that this tool will be useful for you. To give us a feedback please send an email to devilanapp(AT)synertronixx.de.

Here you can download DeviLAN App from Apple Appstore.

your synertronixx team



#########
